Support Vector Machines

from sklearn.datasets import make_classification, make_blobs
#%matplotlib notebook
import matplotlib.pyplot as plt
from matplotlib.colors import ListedColormap
cmap_bold = ListedColormap(['#FFFF00', '#00FF00', '#0000FF','#000000'])
# synthetic dataset for classification (binary)
plt.figure()

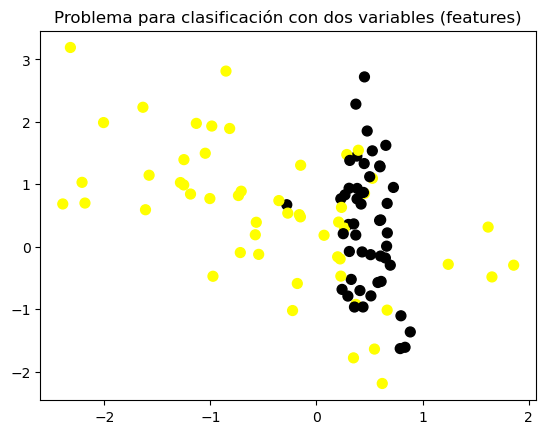

plt.title('Problema para clasificación con dos variables (features)')
X_C2, y_C2 = make_classification(n_samples = 100, n_features=2,
                                n_redundant=0, n_informative=2,
                                n_clusters_per_class=1, flip_y = 0.1,
                                class_sep = 0.5, random_state=0)
plt.scatter(X_C2[:, 0], X_C2[:, 1], c=y_C2,
           marker= 'o', s=50, cmap=cmap_bold)
plt.show()

from sklearn.svm import SVC
from shared_utilities import plot_class_regions_for_classifier_subplot
from sklearn.model_selection import train_test_split

X_train, X_test, y_train, y_test = train_test_split(X_C2, y_C2, random_state = 0)

fig, subaxes = plt.subplots(1, 1, figsize=(7, 5))

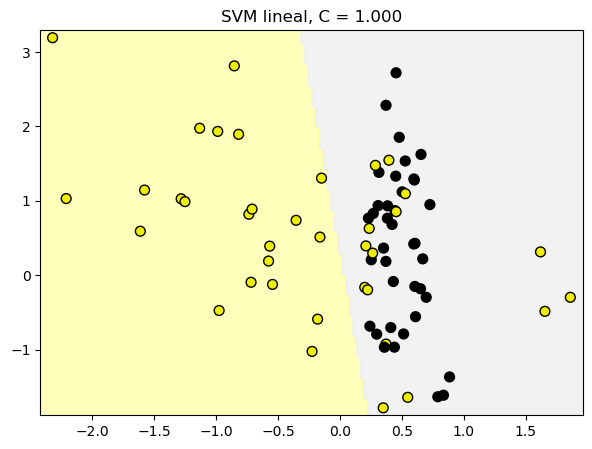

this_C = 1.0
clf = SVC(kernel = 'linear', C=this_C).fit(X_train, y_train)
title = 'SVM lineal, C = {:.3f}'.format(this_C)
plot_class_regions_for_classifier_subplot(clf, X_train, y_train, None, None, title, subaxes)

from sklearn.svm import LinearSVC
from shared_utilities import plot_class_regions_for_classifier

X_train, X_test, y_train, y_test = train_test_split(X_C2, y_C2, random_state = 0)
fig, subaxes = plt.subplots(1, 2, figsize=(8, 4))

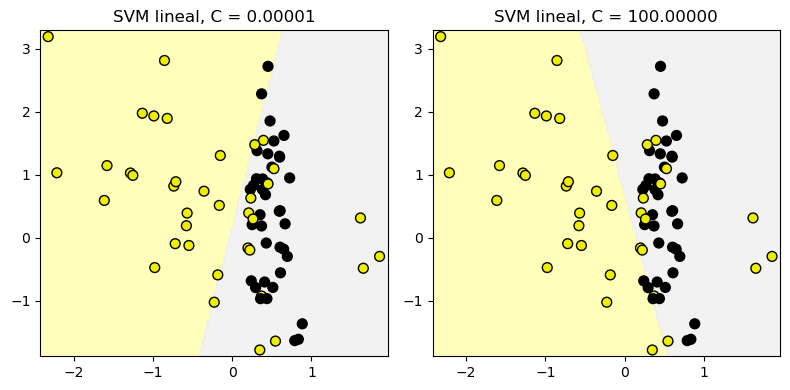

for this_C, subplot in zip([0.00001, 100], subaxes):
    clf = LinearSVC(C=this_C).fit(X_train, y_train)
    title = 'SVM lineal, C = {:.5f}'.format(this_C)
    plot_class_regions_for_classifier_subplot(clf, X_train, y_train,
                                             None, None, title, subplot)
plt.tight_layout()

from sklearn.datasets import load_breast_cancer
# Breast cancer dataset para clasificación
cancer = load_breast_cancer()
(X_cancer, y_cancer) = load_breast_cancer(return_X_y = True)


from sklearn.svm import LinearSVC
X_train, X_test, y_train, y_test = train_test_split(X_cancer, y_cancer, random_state = 0)

clf = LinearSVC().fit(X_train, y_train)
print('Datos de cáncer de mama')
print('Precisión de SVM lineal en el conjunto de entrenamiento: {:.2f}'
     .format(clf.score(X_train, y_train)))
print('Precisión de SVM lineal en el conjunto de prueba: {:.2f}'
     .format(clf.score(X_test, y_test)))

# Conjunto de datos no separable
X_D2, y_D2 = make_blobs(n_samples = 100, n_features = 2, centers = 8,
                       cluster_std = 1.3, random_state = 4)

from sklearn.svm import SVC
from shared_utilities import plot_class_regions_for_classifier

X_train, X_test, y_train, y_test = train_test_split(X_D2, y_D2, random_state = 0)

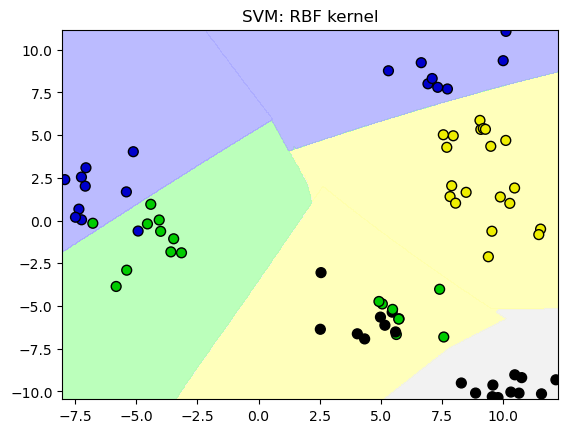

# El kernel por defecto es radial(RBF)
plot_class_regions_for_classifier(SVC().fit(X_train, y_train),
                                 X_train, y_train, None, None,
                                 'SVM: RBF kernel')

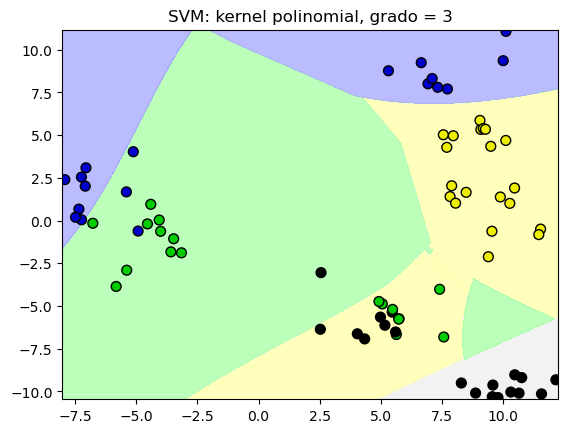

# Comparamos las regiones de decisión con un kernel polinomial, grado = 3
plot_class_regions_for_classifier(SVC(kernel = 'poly', degree = 3)
                                 .fit(X_train, y_train), X_train,
                                 y_train, None, None,
                                 'SVM: kernel polinomial, grado = 3')

from shared_utilities import plot_class_regions_for_classifier

X_train, X_test, y_train, y_test = train_test_split(X_D2, y_D2, random_state = 0)
fig, subaxes = plt.subplots(3, 1, figsize=(4, 11))

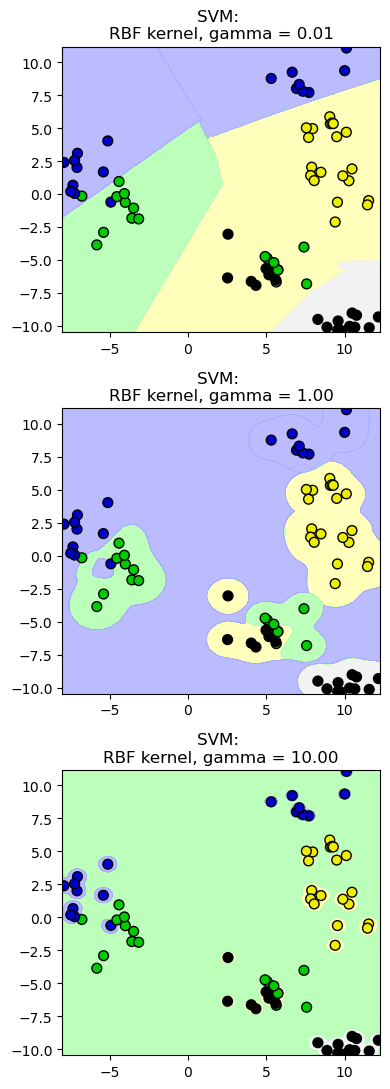

for this_gamma, subplot in zip([0.01, 1.0, 10.0], subaxes):
    clf = SVC(kernel = 'rbf', gamma=this_gamma).fit(X_train, y_train)
    title = 'SVM: \nRBF kernel, gamma = {:.2f}'.format(this_gamma)
    plot_class_regions_for_classifier_subplot(clf, X_train, y_train,
                                             None, None, title, subplot)
    plt.tight_layout()

from sklearn.svm import SVC
from shared_utilities import plot_class_regions_for_classifier_subplot

from sklearn.model_selection import train_test_split


X_train, X_test, y_train, y_test = train_test_split(X_D2, y_D2, random_state = 0)

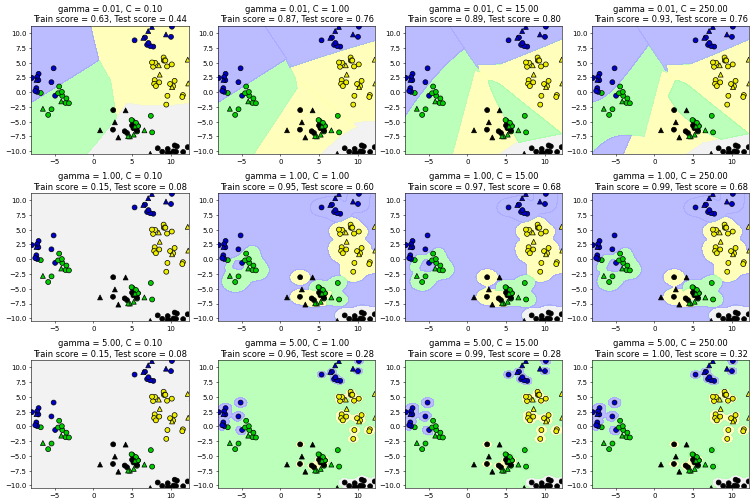

fig, subaxes = plt.subplots(3, 4, figsize=(15, 10), dpi=50)

for this_gamma, this_axis in zip([0.01, 1, 5], subaxes):

    for this_C, subplot in zip([0.1, 1, 15, 250], this_axis):
        title = 'gamma = {:.2f}, C = {:.2f}'.format(this_gamma, this_C)
        clf = SVC(kernel = 'rbf', gamma = this_gamma,
                 C = this_C).fit(X_train, y_train)
        plot_class_regions_for_classifier_subplot(clf, X_train, y_train,
                                                 X_test, y_test, title,
                                                 subplot)
        plt.tight_layout(pad=0.4, w_pad=0.5, h_pad=1.0)

from sklearn.svm import SVC
X_train, X_test, y_train, y_test = train_test_split(X_cancer, y_cancer,
                                                   random_state = 0)

clf = SVC(C=10).fit(X_train, y_train)
print('Datos de cáncer de mama (sin normalizar)')
print('Precisión de SVM con kernel RBF en los datos de entrenamiento: {:.2f}'
     .format(clf.score(X_train, y_train)))
print('Precisión de SVM con kernel RBF en los datos de prueba: {:.2f}'
     .format(clf.score(X_test, y_test)))
